This is direct video showing how to replace the cable:--] But this video is for newer model.But i suggest you to check this, as it will definitely help you getting the cable out and installing new.
This instruction below are for 1993 model.
If you end up doing it yourself, put at least one of the screws back to hold the latch in place while you disconnect the operating rods. Roll it up & remove the rear track for the door glass. Unbolt the inside door handle & remove it with the latch.
Technical Instructions
1. Remove door trim panel and water shield per Shop Manual Sec. 01-05a.
NOTE: Place a strip of masking tape along the edge of door before removing trim panel to prevent scratching the door with the trim panel removal tool.
2. Snap cable housing end from slot on inside door handle assembly and disconnect cable.
NOTE: Use care to prevent bending of cable housing retainer bracket.
3. Remove rear window channel retaining bolt to allow access to door latch.
4. Position a block (screwdriver handle) between the latch and the door inner panel and snap the cable housing end out of slot (towards inner panel) on door latch assembly and disconnect cable at latch.
NOTE: Use care when removing cable housing to avoid bending of the latch. Discard cable.
5. Hook up new cable at latch and snap cable housing end into slot.
NOTE: Make sure the cable housing is fully seated in the slot.

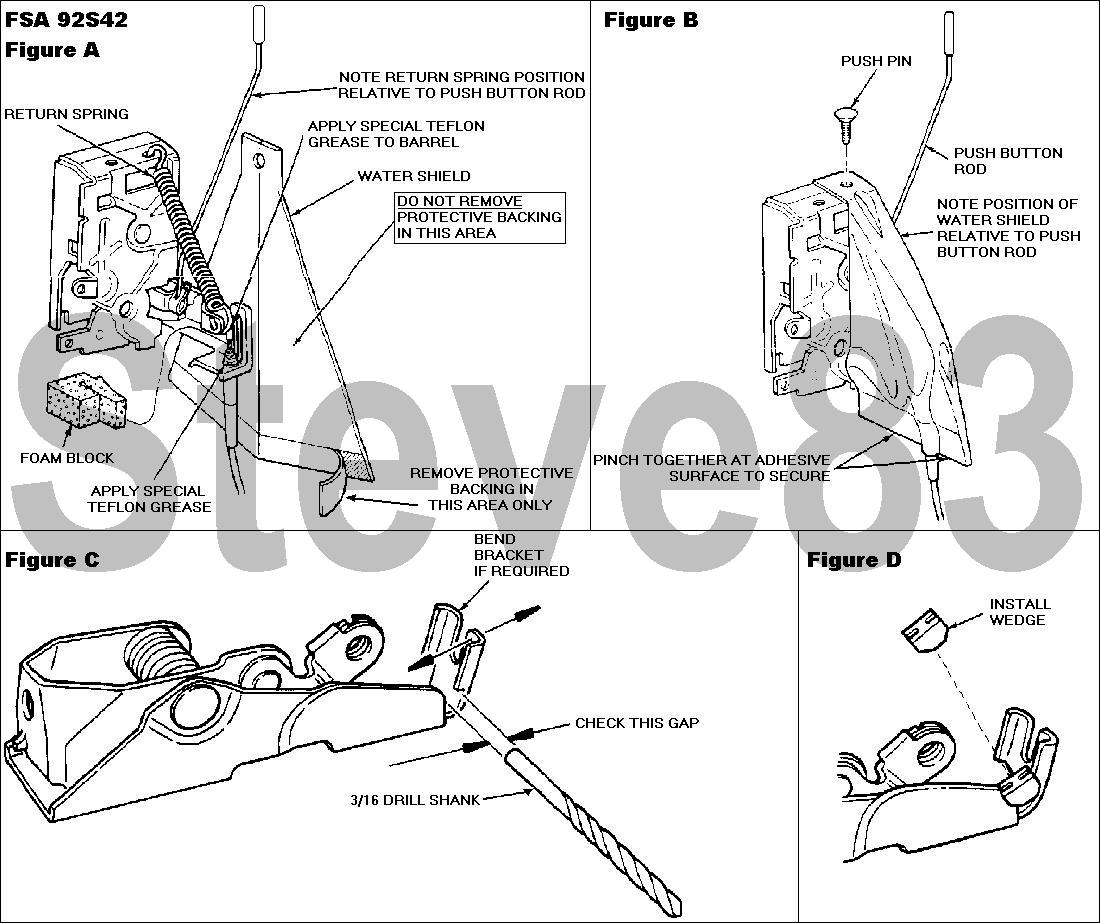

6. Apply a light film of Teflon grease to the barrel end of the cable. See Figure A.
7. Install return spring. See Figure A.
NOTE: Ensure that the push button rod is located between the spring and the door inner panel.
8. Install foam block at latch. See Figure A.
9. Position water shield over the return spring and install push pin to retain upper portion of water shield. See Figure B.
NOTE: Push pin goes in the same hole as the return spring.
10. Clean hands of grease before performing step 11.
11. Remove protective backing along the lower edges only of the water shield. See Figure A.
12. Install latch water shield at door latch. Pinch the exposed adhesive surfaces together to secure the water shield. Check to insure water shield is not showing through the door shut-face latch access hole. See Figure B.
13. Attach cable to inside door handle assembly and snap cable housing into slot.
NOTE: Make sure the cable housing is fully seated.
14. Check the gap as shown in remote control using a 3/16 drill bit shank end. The drill bit shank should fit in the gap without any clearance and a tight fit is preferred. See Figure C.
15. If the drill bit is too loose or does not fit, adjust by bending the cable bracket as required.
16. Place plastic wedge on remote bracket as shown. Wedge must fit with at least a light press fit for retention. See Figure D.
17. After installation, Apply a dab of special Teflon grease, supplied with the service cable to cable housing openings at inside handle end. The grease should surround and contact the cable all the way around, to seal the opening between the cable and the cable housing.
18. Check all latch functions to insure correct assembly of latch system. If the inside handle does not release properly, replace the inside handle remote release mechanism.
19. Reposition and install trim panel using new push pins if required.
1. Remove door trim panel and water shield per Shop Manual Sec. 01-05a.
NOTE: Place a strip of masking tape along the edge of door before removing trim panel to prevent scratching the door with the trim panel removal tool.
2. Snap cable housing end from slot on inside door handle assembly and disconnect cable.
NOTE: Use care to prevent bending of cable housing retainer bracket.
3. Remove rear window channel retaining bolt to allow access to door latch.
4. Position a block (screwdriver handle) between the latch and the door inner panel and snap the cable housing end out of slot (towards inner panel) on door latch assembly and disconnect cable at latch.
NOTE: Use care when removing cable housing to avoid bending of the latch. Discard cable.
5. Hook up new cable at latch and snap cable housing end into slot.
NOTE: Make sure the cable housing is fully seated in the slot.
6. Apply a light film of Teflon grease to the barrel end of the cable. See Figure A.
7. Install return spring. See Figure A.
NOTE: Ensure that the push button rod is located between the spring and the door inner panel.
8. Install foam block at latch. See Figure A.
9. Position water shield over the return spring and install push pin to retain upper portion of water shield. See Figure B.
NOTE: Push pin goes in the same hole as the return spring.
10. Clean hands of grease before performing step 11.
11. Remove protective backing along the lower edges only of the water shield. See Figure A.
12. Install latch water shield at door latch. Pinch the exposed adhesive surfaces together to secure the water shield. Check to insure water shield is not showing through the door shut-face latch access hole. See Figure B.
13. Attach cable to inside door handle assembly and snap cable housing into slot.
NOTE: Make sure the cable housing is fully seated.
14. Check the gap as shown in remote control using a 3/16 drill bit shank end. The drill bit shank should fit in the gap without any clearance and a tight fit is preferred. See Figure C.
15. If the drill bit is too loose or does not fit, adjust by bending the cable bracket as required.
16. Place plastic wedge on remote bracket as shown. Wedge must fit with at least a light press fit for retention. See Figure D.
17. After installation, Apply a dab of special Teflon grease, supplied with the service cable to cable housing openings at inside handle end. The grease should surround and contact the cable all the way around, to seal the opening between the cable and the cable housing.
18. Check all latch functions to insure correct assembly of latch system. If the inside handle does not release properly, replace the inside handle remote release mechanism.
19. Reposition and install trim panel using new push pins if required.
![fsa92s42doorlatchseal.jpg FSA 92S42 Door Latch Seal Check [url=http://www.ford.com/owner-services/customer-support/recall-information]the Ford website[/url] to see if your VIN is affected. Affected Vehicles: 1992 Ranger, F-Series / Bronco / Medium Truck Note that this is a safety recall, and any included vehicle will be repaired free, no matter how old it is, how long the owner waits to present it for repair, or how many times it has been sold. Ford Motor Company has determined that a defect which relates to motor vehicle safety exists in certain 1992 model year F-Series trucks and chassis-cabs, Bronco and Ranger trucks. Safety Defect: Water may enter the door latch release mechanisms on your truck and at sub-freezing temperatures it may freeze. If a latch release were to freeze, it could result in the door being difficult to open or not latching securely. If not properly latched, a door could open unexpectedly if the driver or a passenger should jar or lean against the door. If not wearing a safety belt, an occupant could fall from the vehicle and be injured. Locking the doors using the inside door lock button may reduce the chance that a door may open unexpectedly. Even if the doors on your truck were previously repaired for frozen latches, Ford wants to install new cable assemblies, and recommends that you follow the instructions in this Recall Letter. Reminder: Drivers and passengers should always wear their seat belts when the vehicle is in motion! Repairs: At no cost to you, your dealer will install revised design door latch release cable assemblies for both front doors. These cables will also correct difficult to open doors during or after cold weather exposure. How Long Will It Take: The time needed to repair you truck is less than two hours. However, due to service scheduling times, your dealer may need your vehicle for one full working day. Call your dealer without delay. Ask for a service date and if parts are in stock. If your dealer does not have the parts in stock, they can be ordered before scheduling your service date. Parts would be expected to arrive within a week. When you bring your truck in, give the dealer this letter. If you misplace this letter, your dealer will still do the work, free of charge If the dealer doesn't make the repair promptly and without charge, you may contact the Ford Customer Assistance Center, 300 Renaissance Center, P. O. Box 433360, Detroit, Michigan 48243. You also may send a complaint to the Administrator, National Highway Traffic Safety Administration, 400 Seventh Street, S.W., Washington, D.C. 20590 or call the toll free Auto Safety Hotline 1-800-424-9393 (Washington D.C. area residents may call 366-0123). Parts F-Series/Bronco/Medium Truck Water Shield Kit Number F2TZ-15221B00-A (1 Kit required per vehicle to repair both doors) F-Series/Bronco/Medium Trucks and Chassis Cabs: Install Revised Design Door Latch Release Assemblies Both Doors (with/without power locks) 1.3 Hrs. Technical Instructions 1. Remove door trim panel and water shield per Shop Manual Sec. 01-05a. NOTE: Place a strip of masking tape along the edge of door before removing trim panel to prevent scratching the door with the trim panel removal tool. 2. Snap cable housing end from slot on inside door handle assembly and disconnect cable. NOTE: Use care to prevent bending of cable housing retainer bracket. 3. Remove rear window channel retaining bolt to allow access to door latch. 4. Position a block (screwdriver handle) between the latch and the door inner panel and snap the cable housing end out of slot (towards inner panel) on door latch assembly and disconnect cable at latch. NOTE: Use care when removing cable housing to avoid bending of the latch. Discard cable. 5. Hook up new cable at latch and snap cable housing end into slot. NOTE: Make sure the cable housing is fully seated in the slot. 6. Apply a light film of Teflon grease to the barrel end of the cable. See Figure A. 7. Install return spring. See Figure A. NOTE: Ensure that the push button rod is located between the spring and the door inner panel. 8. Install foam block at latch. See Figure A. 9. Position water shield over the return spring and install push pin to retain upper portion of water shield. See Figure B. NOTE: Push pin goes in the same hole as the return spring. 10. Clean hands of grease before performing step 11. 11. Remove protective backing along the lower edges only of the water shield. See Figure A. 12. Install latch water shield at door latch. Pinch the exposed adhesive surfaces together to secure the water shield. Check to insure water shield is not showing through the door shut-face latch access hole. See Figure B. 13. Attach cable to inside door handle assembly and snap cable housing into slot. NOTE: Make sure the cable housing is fully seated. 14. Check the gap as shown in remote control using a 3/16 drill bit shank end. The drill bit shank should fit in the gap without any clearance and a tight fit is preferred. See Figure C. 15. If the drill bit is too loose or does not fit, adjust by bending the cable bracket as required. 16. Place plastic wedge on remote bracket as shown. Wedge must fit with at least a light press fit for retention. See Figure D. 17. After installation, Apply a dab of special Teflon grease, supplied with the service cable to cable housing openings at inside handle end. The grease should surround and contact the cable all the way around, to seal the opening between the cable and the cable housing. 18. Check all latch functions to insure correct assembly of latch system. If the inside handle does not release properly, replace the inside handle remote release mechanism. 19. Reposition and install trim panel using new push pins if required. Labor Allowances VEHICLE LINE OPERATION DESCRIPTION LABOR TIME LABOR CODE Ranger Trucks Install Revised Design Door Latch Release Assemblies Both Doors (manual locks) 1.4 Hrs. Insert in Box "B" on Form 1864 Ranger Trucks Install Revised Design Door Latch Release Assemblies Both Doors (with power locks) 1.6 Hrs. Insert in Box "C" on Form 1864 F-Series/Bronco/Medium Trucks and Chassis Cabs Install Revised Design Door Latch Release Assemblies Both Doors (with/without power locks) 1.3 Hrs. Insert in Box "B" on Form 1864 Administrative Allowance 0.1 Hrs. NOTE: Add 0.1 hour Administrative Allowance to the total repair time. Parts Requirements Parts will not be direct shipped for this recall. Order your parts requirements through normal order processing channels. Ranger Truck Water Shield Kit Number F2TZ-10221B00-A Door Latch Release Cable Repair Kit Includes: QUANTITY PART NUMBER DESCRIPTION CLASS DEALER PRICE 1 I.S. 8075 Instruction Sheet - - 2 - Cable Seal - DR. Latch Remote Control (Water Shield) BG $10.50 2 - Rivet BG- 6 - Latch Screw BG- 2 - Cable Assy. - Latch Remote Control BG- 2 - Push Pin BG - 2 - Return Spring BG- 2 - Rubber Cap BG - 1 Required per vehicle to repair both doors. F-Series/Bronco/Medium Truck Water Shield Kit Number F2TZ-15221B00-A Door Latch Release Cable Repair Kit Includes: QUANTITY PART NUMBER DESCRIPTION CLASS DEALER PRICE 1 I.S. 8076 Instruction Sheet - - 2 - Cable Ins. DR. Latch Remote Control (Foam Block) BG $7.25 2 - Cable Seal Dr. Latch Remote Control (Water Shield) BG - 2 - Return Spring BG - 2 - Push Pin BG - 2 - Cable Assembly Latch Remote BG - 2 - Seal Door Latch Remote Control (Wedge) BG - 1 Required per vehicle to repair both doors. ****NOT PART OF RECALL INFO**** Inspect under remote (inside handle) for cracks to the inner door skin. [url=http://www.supermotors.net/registry/media/687491][img]http://www.supermotors.net/getfile/687491/thumbnail/doorlatchcracks.jpg[/img][/url]](http://www.supermotors.net/getfile/478846/fullsize/fsa92s42doorlatchseal.jpg)
